Description
Product Data Sheet

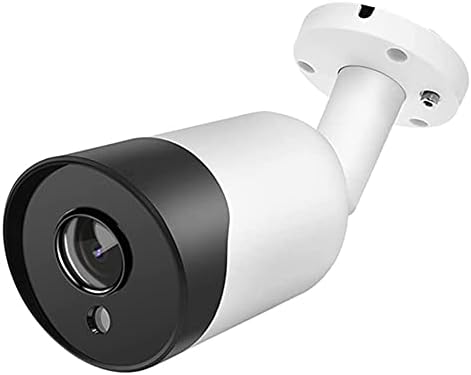

Product Name: Wisdom Fish Eye 1.8 MM IP 5 MP Camera
Product Overview
- Type: IP Camera
- Lens: 1.8 mm Fisheye Lens
- Resolution: 5 Megapixels
- Purpose: Designed for wide-area surveillance with a fisheye lens, providing panoramic views in a single shot.
- Ideal for: Large open areas, retail stores, warehouses, offices, and public spaces.
Key Features
- Ultra-Wide Angle: 360° panoramic view with 1.8 mm fisheye lens for full coverage.
- High Resolution: 5 MP resolution for clear image quality.
- Compression Format: H.265/H.264 encoding to save on storage and bandwidth without compromising quality.
- Day/Night Functionality: Automatic IR cut filter for optimal performance in varying light conditions.
- Weatherproofing: IP66-rated, suitable for indoor and outdoor environments.
- Wide Dynamic Range (WDR): Handles challenging lighting conditions with ease.
- Motion Detection: Sends alerts on detecting movement within the field of view.
- Storage: Supports microSD card up to 128 GB for local recording (check compatibility).
Technical Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 5 MP (2592 x 1944) |
| Lens Type | Fixed lens, fisheye 1.8 mm |
| Field of View | 360° (panoramic view) |
| IR Distance | Up to 10 m (varies based on lighting) |
| Video Compression | H.265 / H.264 / MJPEG |
| Frame Rate | Up to 25/30 fps at full resolution |
| Audio | Built-in microphone and speaker |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS |
| ONVIF Compliance | Yes |
| Operating Temperature | -20°C to 60°C |
| Weatherproof Rating | IP66 |
| Power Supply | DC 12V or PoE (Power over Ethernet) |
| Dimensions | 98 mm × 65 mm |
| Weight | Approx. 250 g |
| Installation | Ceiling or wall mount options |
Additional Functions
- Smart Features: Supports line crossing, intrusion detection, and region entrance/exit.
- User Interface: Intuitive interface with mobile and desktop apps.
- Compatible Software: Compatible with third-party VMS and NVRs via ONVIF.
Application Areas
- Commercial & Retail: Efficient surveillance with panoramic views.
- Public Areas: Ideal for monitoring open spaces.
- Residential Use: For those needing comprehensive coverage with minimal blind spots.
Package Contents
- Wisdom Fish Eye 1.8 MM IP 5 MP Camera
- Mounting Kit
- User Manual
