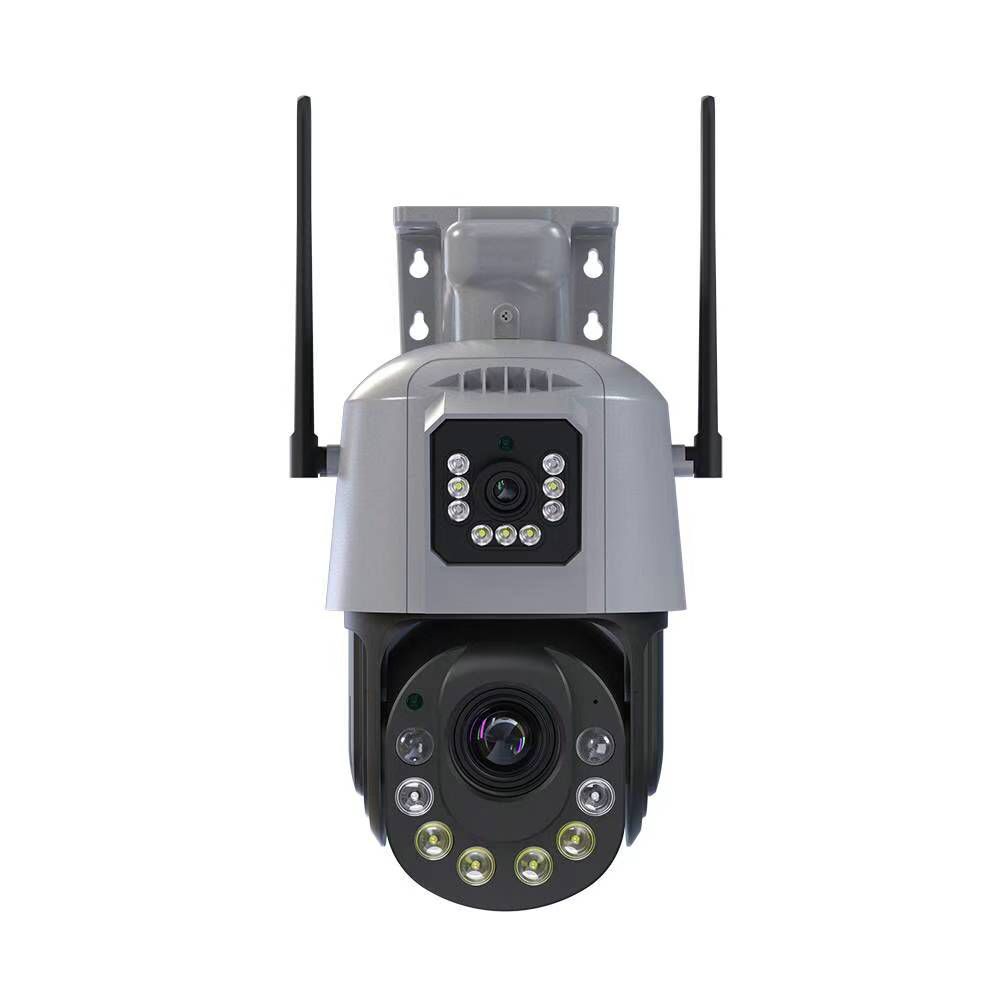

6 MP WiFi Dual Lens PTZ Camera with Two-Way Audio Data Sheet

Camera Specifications

• Resolution: 6 Megapixels (3072 x 2048 resolution)
• Lens Type: Dual Lens (wide-angle and telephoto)
• Field of View:
  • Wide Lens: Approximately 90°
  • Telephoto Lens: Approximately 45°
• Zoom Capabilities:
  • Optical Zoom: 4x optical (may vary by model)
  • Digital Zoom: Up to 8x
• Night Vision: Infrared LEDs, range up to 30 meters
• Minimum Illumination: 0.01 Lux (Color); 0 Lux (IR On)

PTZ (Pan-Tilt-Zoom) Functions

• Pan Range: 0° to 355°
• Tilt Range: 0° to 90°
• PTZ Speed: Adjustable, with preset and auto-patrol options
• Preset Points: Up to 16 programmable positions

Two-Way Audio Communication

• Built-in Microphone and Speaker: Allows real-time two-way communication
• Noise Reduction: Up to 3D noise reduction for clearer audio transmission
• Audio Range: Effective up to 15 meters for both listening and speaking
• Voice Control Support: Optional integration with virtual assistants (model-dependent)

Connectivity

• WiFi Compatibility: 2.4 GHz (IEEE 802.11b/g/n)
• Ethernet Option: Optional RJ45 port for wired connectivity
• Mobile App Support: iOS and Android for remote viewing, PTZ control, and two-way audio
• ONVIF Compatibility: Yes, compatible with third-party NVRs and software

Motion and Sound Detection

• AI Motion Detection: Configurable motion zones, human detection to minimize false alarms
• Sound Detection: Triggers alerts based on unusual sounds in the monitored area
• Alerts: Push notifications via app, email snapshots

Storage Options

• MicroSD Card Slot: Supports MicroSD up to 128 GB (card not included)
• Cloud Storage: Optional (subscription-based)

Power and Consumption

• Power Supply: 12V DC (adapter included)
• Power Consumption: ≤ 10W (normal operation); up to 15W (with IR on)

Durability and Environmental Specifications

• Weather Resistance: IP66 rating (waterproof and dustproof for outdoor use)
• Operating Temperature: -20°C to 60°C
• Housing Material: Durable ABS plastic or metal casing

Additional Features

• Auto-Tracking: Tracks moving objects within PTZ range
• Video Compression: H.265 and H.264 for optimized storage and streaming
• Privacy Masking: Customizable privacy zones to block specific areas from view

Dimensions and Weight

• Dimensions: 150 mm x 180 mm x 160 mm (approximate)
• Weight: 1.2 kg (with mounting hardware)

Included Accessories

• Mounting Bracket
• Installation Guide
• Screws and Wall Anchors
